CC8CLED, CC16CLED

8-, 16-Bit Loadable Cascadable Bidirectional Binary Counters with Clock Enable and Asynchronous Clear

CC8CLED and CC16CLED are, respectively, 8- and 16-bit (stage), synchronously loadable, asynchronously clearable, cascadable, bidirectional binary counters. These counters are implemented using carry logic with relative location constraints, which assures most efficient logic placement.

The asynchronous clear (CLR) is the highest priority input. When CLR is High, all other inputs are ignored; the Q outputs, terminal count (TC), and clock enable out (CEO) go to logic level zero, independent of clock transitions. The data on the D inputs is loaded into the counter when the load enable input (L) is High during the Low-to-High clock (C) transition, independent of the state of clock enable (CE). The Q outputs decrement when CE is High and UP is Low during the Low-to-High clock transition. The Q outputs increment when CE and UP are High. The counter ignores clock transitions when CE is Low.

For counting up, the TC output is High when all Q outputs and UP are High. For counting down, the TC output is High when all Q outputs and UP are Low. To cascade counters, the count enable out (CEO) output of each counter is connected to the CE pin of the next stage. The clock, UP, L, and CLR inputs are connected in parallel. CEO is active (High) when TC and CE are High. The maximum length of the counter is determined by the accumulated CE-to-TC propagation delays versus the clock period. The clock period must be greater than n(t_CE-TC), where n is the number of stages and the time t_CE-TC is the CE-to-TC propagation delay of each stage. When cascading counters, use the CEO output if the counter uses the CE input; use the TC output if it does not.

The counter is asynchronously cleared, outputs Low, when power is applied. FPGAs simulate power-on when global reset (GR) or global set/reset (GSR) is active. GR (XC5200) and GSR (XC4000, Spartans, Virtex) default to active-High but can be inverted by adding an inverter in front of the GR/GSR input of the STARTUP or STARTUP_VIRTEX symbol.

Inputs						Outputs
CLR	L	CE	C	UP	Dz - D0	Qz - Q0	TC	CEO
1	X	X	X	X	X	0	0	0
0	1	X		X	Dn	dn	TC	CEO
0	0	0	X	X	X	No Chg	No Chg	0
0	0	1		1	X	Inc	TC	CEO
0	0	1		0	X	Dec	TC	CEO
z = 7 for CC8CLED; z = 15 for CC16CLED dn = state of referenced input (Dn) one setup time prior to active clock transition TC = (Qz•Q(z-1)•Q(z-2)•...•Q0•UP) + (!Qz•!Q(z-1)•!Q(z-2)•...•!Q0•!UP) CEO = TC•CE

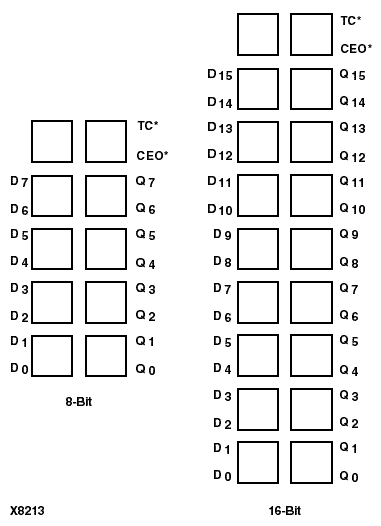

Topology for XC4000 and Spartans

This is the CC8CLED (8-bit) and CC16CLED (16-bit) topology for XC4000 and Spartan series devices.

In the process of combining the logic that loads CEO and TC, the place and route software might map the logic that generates CEO and TC to different function generators. If this mapping occurs, the CEO and TC logic cannot be placed in the uppermost CLB as indicated in the illustration.

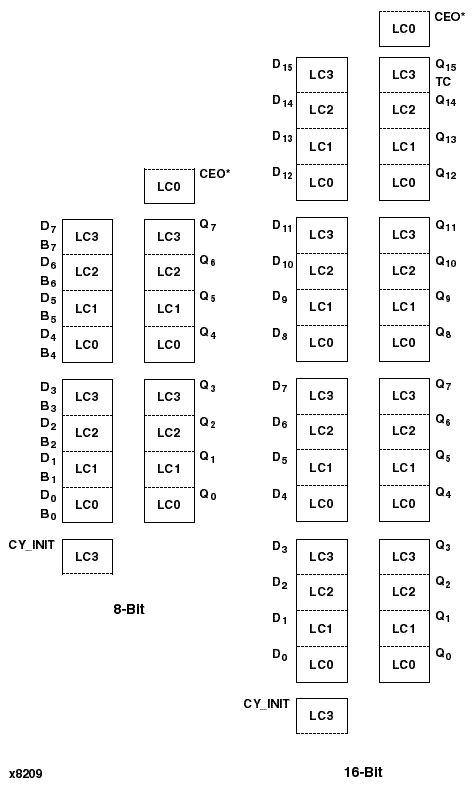

Topology for XC5200

This is the CC8CLED (8-bit) and CC16CLED (16-bit) topology for XC5200 devices.

Figure 4.24 CC8CLED Implementation XC4000, Spartans

Figure 4.25 CC8CLED Implementation XC5200

Figure 4.26 CC8CLED Implementation Virtex
